Thermal Material

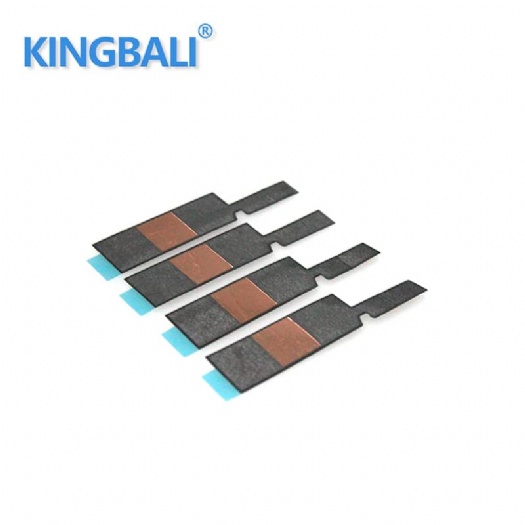

2600S artificial graphite

Product features

application:

Can be widely used in large-scale communications equipment and peripheral devices, desktop computers, tablets, smartphones, mobile terminals, high-power LED

Features and advantages:

The 2600S series of artificial graphite thermal film allows electronic equipment products to be miniaturized, thin and lightweight, and widely used in small clearance and non-insulated environments, to a certain extent to meet the consumer demand for electronic products thin and light. Artificial graphite material thermal conductivity anisotropy, in the direction of thickness, with the same thermal conductivity as conventional thermal interface materials, on the plane, with much better thermal conductivity than metal, can quickly take away the heat, play the effect of average heat.

EIGENVALUE

characteristic2600S-172600S-252600S-40
thickness0.017 mm ±10%0.025 mm ±10%0.04 mm ±10%
Thermal conductivity (X, Y axis)1600~1900 W/M.K1500~1700 W/M.K1100~1300 W/M.K
Thermal conductivity (z axis)15-20 W/M.K15-20 W/M.K15-20 W/M.K
Thermal diffusivity9.09~9.94 m2/s8.40~8.96 m2/s7.62~9.80 m2/s
hardness85 Shore 00 ±10%85 Shore 00 ±10%85 Shore 00 ±10%
density2.1 g/cm32.1 g/cm31.6-1.8 g/cm3
Specific heat capacity (50°C)0.85 J/kg.K0.85 J/kg.K0.85 J/kg.K
Operating temperature-40~400 ℃-40~400 ℃-40~400 ℃
Bend test (R5/180°)>1000 Times>10000 Times>10000 Times
tensile strength650 MPa650 MPa650 MPa
Environmental suitabilityHalogen-free/ROHSHalogen-free/ROHSHalogen-free/ROHS
Flammability ratingUL94 V0UL94 V0UL94 V0
Note: The data recorded on this website are representative values ​​rather than guaranteed values. To improve product performance, specifications are subject to change without notice. The use of the product recorded in this website is just an example. The product can have a variety of different application scenarios and environments, which are beyond our control. Therefore, whether the product is suitable for your production process and conditions, you need to make full use of it before using it. Evaluate to confirm whether its performance and effect are in line with expectations. For applications that need to be considered safe, please test and confirm their safety in advance. In addition, the company does not guarantee that the purposes recorded on this website will not infringe any patents. Before using this product, please carefully read the explanatory text and safety data sheet (MSDS) marked on the main body of the product. This product is manufactured for general industrial applications. Do not use for medical purposes.
The above performance data is the typical data of the product tested at a humidity of 70% and a temperature of 25°C. It is for reference only when used by customers, and cannot fully guarantee all the data that can be achieved in a specific environment. Please refer to the actual measured data when using the customer. It is recommended that the user do an applicability experiment before using it to prevent the product from being used in unsuitable occasions, such as adverse consequences due to unsuitability in the applicable occasion, KINGBALI Company Reserve the right to interpret the product.
